Ubiquiti UniFi UAP HD 800/1733Mbps Wave 2 Access Point (UAP-AC-HD)

£239.99

In stock

Product Description

The Ubiquiti UniFi UAP-AC-HD is a high-density access point in a refined industrial design that features the latest in Wi-Fi 802.11AC Wave 2 MU-MIMO technology. The UAP-AC-HD supports 500+ (maximum 1,000) concurrent clients and has simultaneous dual band. This access point works perfectly both indoors and outdoors.

Ubiquiti UniFi UAP-AC-HD Key Features

  • Simultaneous Dual-Band
  • 500+ concurrent clients (1,000 theoretical maximum)
  • Four-Stream 802.11AC Wave 2 Technology
  • 800 Mbps at 2.4GHz
  • 1733 Mbps at 5GHz
  • 4×4 Multi-User MIMO
  • 802.3at PoE+ Compatibility

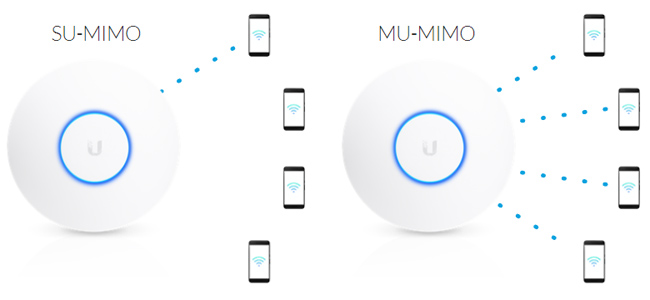

High‑Density Applications Powered by MU‑MIMO Technology
802.11ac Wave 2 MU‑MIMO (Multi‑User, Multiple Input, Multiple Output) technology allows a Wave 2 AP to communicate with multiple clients at the same time – significantly increasing multi‑user throughput and overall user experience.MU-MIMO

Radio Hardware Acceleration
Independent 2.4 GHz and 5 GHz dedicated hardware offload for maximised multi‑user throughput and reduced latency
Radio Hardware Acceleration

CPU Hardware Acceleration
Dedicated hardware offload for QoS, Guest Control, and Client Management
CPU Hardware Acceleration

Optimised for MU‑MIMO
Antenna System Optimised for 802.11ac Wave 2 MU-MIMO Beamforming
Optimised for MU-MIMO

Beamforming
Data is sent and received using multiple antennas to increase throughput and range
Beamforming

Advanced Features in UniFi Controller
UniFi is the premiere Software Defined Networking (SDN) solution with seamless integration of high‑performance switching, gateways, and more.
UniFi Controller advanced features

Ubiquiti UniFi AC HD Access Point – Technical Specifications

General

  • Dimensions: 220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89″)
  • Weight: 700 g (1.54 lb)
  • With Mounting Kits: 830 g (1.83 lb)
  • Networking Interface: (2) 10/100/1000 Ethernet Ports
  • Buttons: Reset
  • Power Method: 802.3at PoE+
  • Supported Voltage Range: 44 to 57VDC
  • Power Supply: UniFi Switch (PoE)
  • Power Save: Supported
  • Beamforming: Supported
  • Maximum Power Consumption: 17W
  • TX Power:
    – 2.4 GHz:6-25 dBm
    – 5 GHz: 6-25 dBm
  • Antennas:
    – 2.4 GHz: (2) Dual-Port, Dual-Polarity Antennas, 3 dBi each
    – 5 GHz: (2) Dual-Port, Dual-Polarity Antennas, 4 dBi each
  • WiFi Standards: 802.11 a/b/g/n/r/k/v/ac/ac-wave2
  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w/PMF
  • BSSID: Up to 8 per Radio
  • Mounting: Wall/Ceiling (Kits Included)
  • Operating Temperature: -10 to 70° C (14 to 158° F)
  • Operating Humidity: 5 to 95% Noncondensing
  • Certifications: CE, FCC, IC

Advanced Traffic Management

  • VLAN: 802.1Q
  • Advanced QoS: Per-User Rate Limiting
  • Guest Traffic Isolation: Supported
  • WMM: Voice, Video, Best Effort, and Background
  • Concurrent Clients: 1000+

Supported Data Rates (Mbps)

  • Standard: Data Rates
  • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11n: 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
  • 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160)
  • 802.11b: 1, 2, 5.5, 11 Mbps
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
